Technical Specification

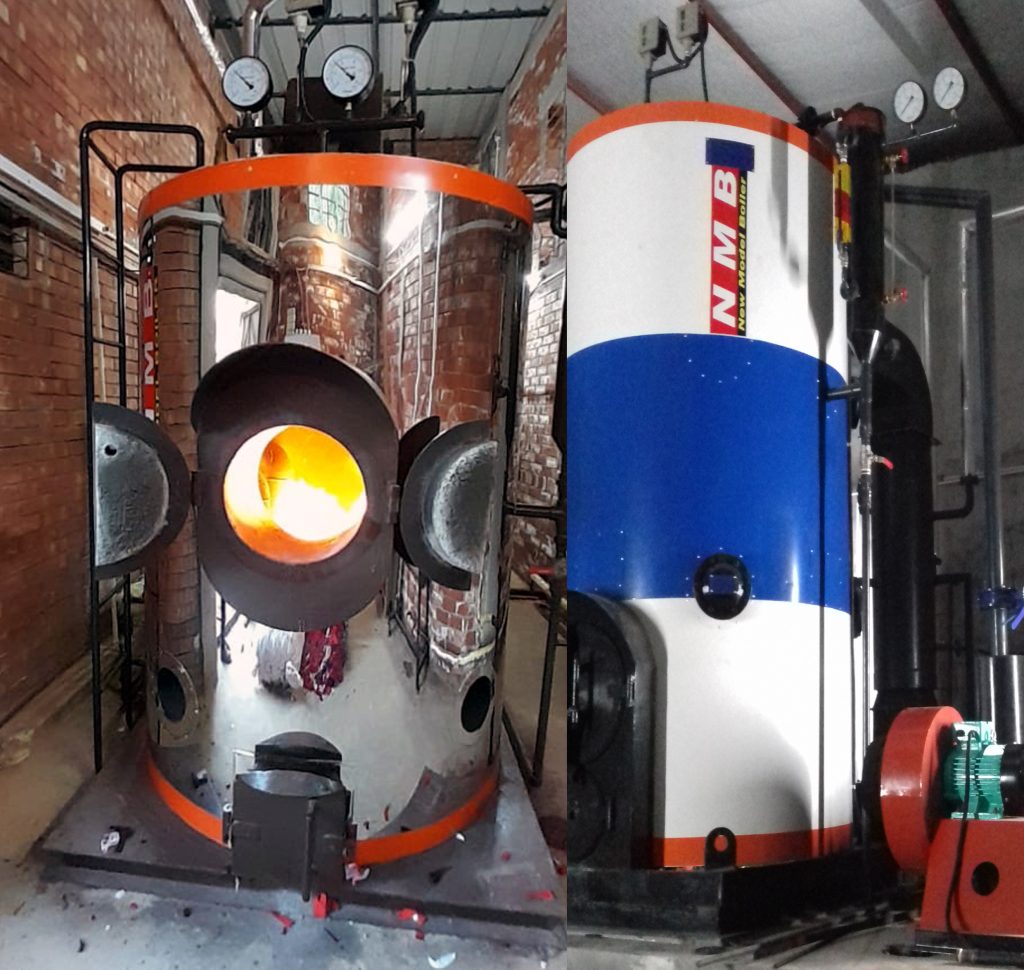

Wastage Jhut Dry Boiler
Smoke Free
Large Furnace Convenient For Manual Operation.
Less Dust Discharge
Rapid Warming and High Heat Efficiency Up to 86%
Environment Friendly.
100% Safety, Reliability and Low Operating Cost.
Easy Installation & Maintenance
Fully Automatic Control
We Provide 2 Passes, 3 Passes & 4 Passes.
100% Imported Boiler Grade Steel.
| Model | Capacity/kg/hr | Working Pressure kg/cm | Power connection KW | Dimension (mm) | ||
| Length | Width | Height | ||||
| NMVB-660 | 350 | 7 | 2.5 | 1482 | 1482 | 2500 |
| NMVB-670 | 500 | 7 | 3 | 1705 | 1705 | 3018 |
| NMVB-680 | 750 | 7 | 4 | 1920 | 1808 | 3160 |
| NMVB-690 | 1000 | 10 | 5 | 2078 | 2078 | 3510 |
